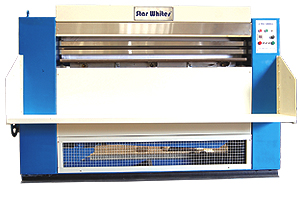

| FLAT WORK IRONER (ECH) |
|
The flatwork ironer ECH model series is a single roll industrial “Electrical chest heated” ironers for small institutions, boarding schools where space and budget is limited.
These models are specially designed with spring supported chest for ironing thicker and folded linen. |
|
| The standard Futures |
|
- Complete powder coated panels.
- Heat proof padding for longer life.
- Highest level of safety.
- Finger guard protection and emergency stop.
- Electrical heated.
- Powerful exhaust blower.
- Front Feed and rear return type.
|
|
|
 |
| Model |
Roll Size
(KGS) |
Useful Length
(MM) |
Motor
(H.P) |
Heater
(K.W) |
Dimensions
L * D * H(mm) |
| ECH-700 |
DIA 300 |
700 |
0.5 |
3 |
1675*600*1800 |
| ECH-1600 |
DIA 300 |
1600 |
1 |
6 |
2250*1350*2150 |
|
|
|
|

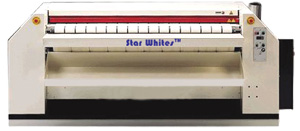

| FLAT WORK DRYING IRONER (SR) |
|
The SR Series - Single Roll High Performance Ironers for medium to large On Premise Laundries Demanding High Quality Linen Service
The SR series ironers are ideal for medium to large size laundries including resort hospitality, health care and commercial laundries. This line of ironers produces high quality linen finishes easily and efficiently. It has high evaporation power and saves energy |
|
| The standard Futures |
|
- Safety finger bar across full width of ironer
- Safety and warning labels
- Padding and ribbons of temperature resistant Nomex
- Steam or Gas heating
- Gas heated models for Natural or LP gas
- Variable speed drive with soft-start
- Electronic temperature control with digital read out
- Jog forward/reverse
- Front or rear return
- Full exhaust canopy with external blower
- Electrical and mechanical protection devices
- Three phase electrical service
- Highly polished heated cylinder
- Lift of interlocked end panels for easy maintenance
- emergency stop buttons around the machine
|
|
|
 |
| Model |
Roll Size
(KGS) |
Useful Length (MM) |
Steam
(kgs/Hr) |
Productivity Mt/mint |
Motor
(H.P) |
Dimensions
L * D * H(mm) |
| SCH-2000 |
DIA 400 |
2000 |
50 |
2-6 |
2 |
2950*800*1270 |
| SCH-3000 |
DIA 600 |
3000 |
100 |
2-10 |
3 |
4160*1600*1350 |
| SRH-2000 |
DIA 400 |
2000 |
40 |
1-5 |
1 |
2250*1200*1010 |
| SRH-3000 |
DIA 600 |
3000 |
80 |
1-8 |
2 |
4090*1630*1250 |
|
|
|
|

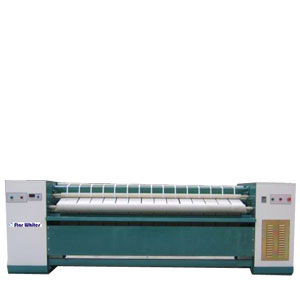

| FLAT WORK DRYING IRONER (SCH) |
|
The IM series –multi roll industrial high productivity deep chest ironers for demanding commercial , Industrial, health care and hospital laundries.
star whites steam heated ironers are solid build units designed to guarantee at all times a high productivity at a high quality level. |
|
| The standard Futures |
|
- Steam heating
- Variable speed drive with soft –start
- Speed control with digital read out
- Electronic temperature control with digital read out
- Pneumatically controlled compression rolls with automatic pressure adjustment
- Roll can be raised and locked pneumatically in an extra wide position for easy maintenance
- Electrical and mechanical protection devices
- Three phase electrical service
- High polished heated chest
- Lift off interlocked panels for easy maintenance
- Independent suction fans for moisture evaporation
- Signal lamps indicating machines operational status
|
|
|
 |
| Model |
Roller Size
(MM)
|
Useful Length (MM) |
No. of Rolls |
Motor(H.P) |
Steam
(kgs/Hr) |
Productivity Mt/mint |
Dimensions
L * D * H(mm) |
| SCH-3300 |
DIA 830 |
3300 |
1 |
7.5 |
180 |
3-15 |
4850*1800*1700 |
| SCH-3300*2 |
DIA 830 |
3300 |
2 |
20 |
360 |
5-25 |
4850*2900*1700 |
|
| |
|
|
|
|
|
 |
