| MULTI FORM FINISHER |
|
| Ideal unit for the finishing of coats, jackets, dresses etc. The working cycles are completely automated thanks to an electronic card, with which it is possible to set nine different cycles, and to regulate the steaming and the drying time. Multi form finisher is a machine without boiler and therefore to be connected to a central steam supply. Both shoulder width and height of the dummy are adjustable. The dummy support (frame) along with its controls can carry out a 360° rotation and is available in three different sizes: Standard, Maxi (for particularly long clothes) or Mini (for children’s clothes). |
|
| Options: |
|
- Steam spotting gun
- Steam trap
|
|
| Model |
Electrical Consu
-
mption
(kw) |
Steam pressure (bar) |
Steam
Consu
-
mption
(kg/ hr) |
Fan motor power (hp) |
Overall
dimensions
(mm) |
Net Weight (kg) |
| MFF |
1 |
5 |
18 |
1 |
1200x
580x
1620 |
82 |
|
|
|
 |
|
|
|
| TROUSERS TOPPER |
|
| Air operated trousers topper, for central steam and compressed air supplies. |
|
| Standard Features: |
- Side waistband stretching device;
- Height adjustable leg stretching carriage and leg clamps made of stainless steel;
- Built-in three phases fan;
- Air heating device;
- Electronic card for the setting of nine ironing cycles in total;
- Ironing cycle controlling: steaming time, steam/air time, drying time;
- Three pressure regulators (for leg clamps, waistband stretcher and leg stretching carriage);
- Switch for the exclusion of the leg stretching carriage;
- Manual size indicator;
- Mechanical airflow regulator;
|
|
| Options available on request: |
|
- Built-in three-phase fan with increased power (1.5 HP);
- Electronic garment-counter;
- Steam trap
|
|
| Model |
Electrical Consu
-
mption
(kw) |
Steam working pressure (bar) |
Air working pressure (bar) |
Steam Cons
-
umption (kg/ hr) |
Air consu
-
mption
(ni /min |
Fan motor power (hp) |
Overall dimensions (mm) |
Net Weight (kg) |
| TT |
2 |
5 |
5 |
20 |
40 |
1 |
1115
x630
x1950 |
140 |
|
|
|
 |
|
|
|

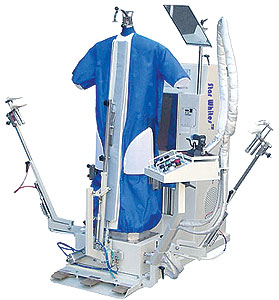

| SHIRT FINISHER |
|
| Shirt Finisher is the new dummy designed by Star whites for the finishing of both washed and dry-cleaned shirts, blousons and jackets. Thanks to its powerful built-in fan (3 Hp) and the steam heated air supply, the shirt finisher is particularly suitable for a high speed finishing of damp clothes. Automatic steam body former for the ironing of shirts, overalls and similar, to be connected to a central steam supply, featuring: |
|
- Two sleeve stretchers with double independent traction
- Front heated and reclining panel
- Automatic carriage with photocell for the stretching of side and back part
- Powerful 3 hp fan
- Button placket part of the dummy with suction
- Electronic card featuring ten programs for an automatic working cycle
- Steam iron connection complete with "all-steam"-iron
- Air superheater ranging from 0° to 350° C
|
|
| Options available on request: |
|
- Electronic inverter for the blowing regulation
|
|
| Model |
Air
working
pressure
(bar) |
Fan
motor
(hp) |
Steam
working
pressure
(bar) |
Steam consu
-
mption
kg/ hr |
Overall
dimensions
(mm) |
Net
Weight
(kg) |
| SF |
6 |
3 |
4 |
30 |
1870x
970
x1950 |
320 |
|
|
|
 |
| |
|
|
|
|
|
 |
